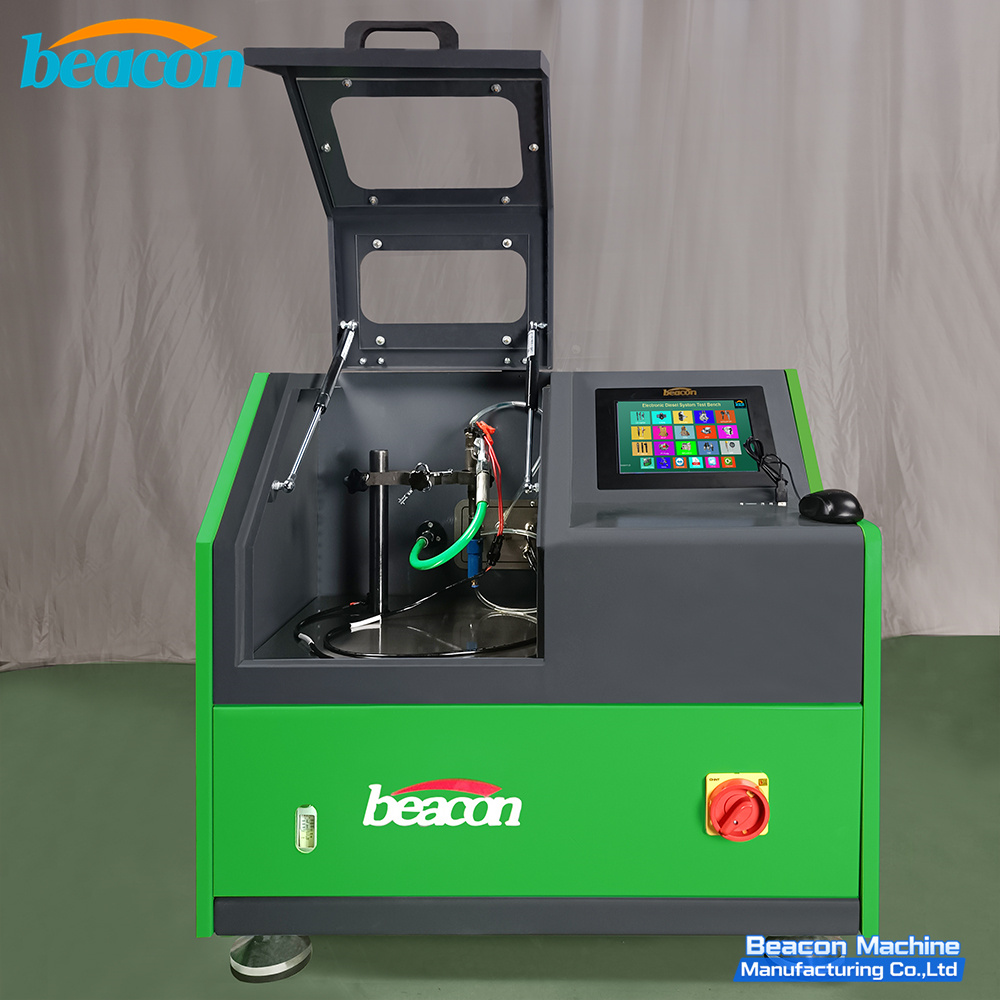

Electronic Machines Engine Stand Eps205 Common Rail Diesel Fuel Injector Test Bank
Haz clic en el botón de WhatsApp para chatear o déjanos un mensaje, y nos pondremos en contacto contigo en un plazo de 12 horas.
Detalles
it packs powerful features including the ability to test Piezo injectors and generate IMA/ISA codes. Motor: 2.0KW Servo Motor. Functionality: Full computer control with print capability.
Testing: Common Rail & Piezo injectors. Coding: Supports Bosch, Denso, Siemens, and Delphi coding. Optional: BIP (Begin of Injection Period) function.
Electronic Machines Engine Stand Eps205 Common Rail Diesel Fuel Injector Test Bank Ventaja
One of the most compact designs on the market (800x750x800mm). Piezo Ready: Capable of testing modern Piezo technology injectors.
Servo Precision: 2.0KW Servo motor ensures consistent pressure and speed.
Parámetro
| Technical Parameters | Specification |
| Voltage | 220V, 1 phase |
| Power output | 2KW |
| Motor speed | 0-3000 Rpm |
| Oil pressure | 0-2000 Bar |
| Flow measurement range | 0-600ml/1000times |
| Flow Measurement Accuracy | 0.1ml |
| Temperature control range | 40±2℃ |
| Gross weight | 163KG |
| Net weight | 135KG |
| Package size | 97*87*91CM |
| Machine size | 80*75*80CM |
Application Scenario:
Designed for professional diesel service centers with limited floor space. Perfect for technicians who need high-precision testing and coding capabilities (generating QR codes) for modern common rail and piezo injectors.FAQ:
A: The EPS205 is a computerized system with Coding capabilities and digital flow sensors, whereas the EPS100S is a manual tester using glass tubes without a PC. EPS205 is for professional calibration; EPS100S is for basic testing.
Q: What is the difference between EPS205 and EPS100S?
Q: What is the difference between EPS205 and CRS5000?
A: Motor & Size: EPS205 is a compact unit (135kg) equipped with a precise 2.0KW Servo Motor . CRS5000 is a larger, heavy-duty unit (280kg) equipped with a powerful 4.0KW Standard Motor . Both perform the same testing and coding functions, but CRS5000 is built for heavier continuous workloads.
Q: Can EPS205 test Piezo injectors?
A: Yes, it fully supports Piezo injector testing and coding.
