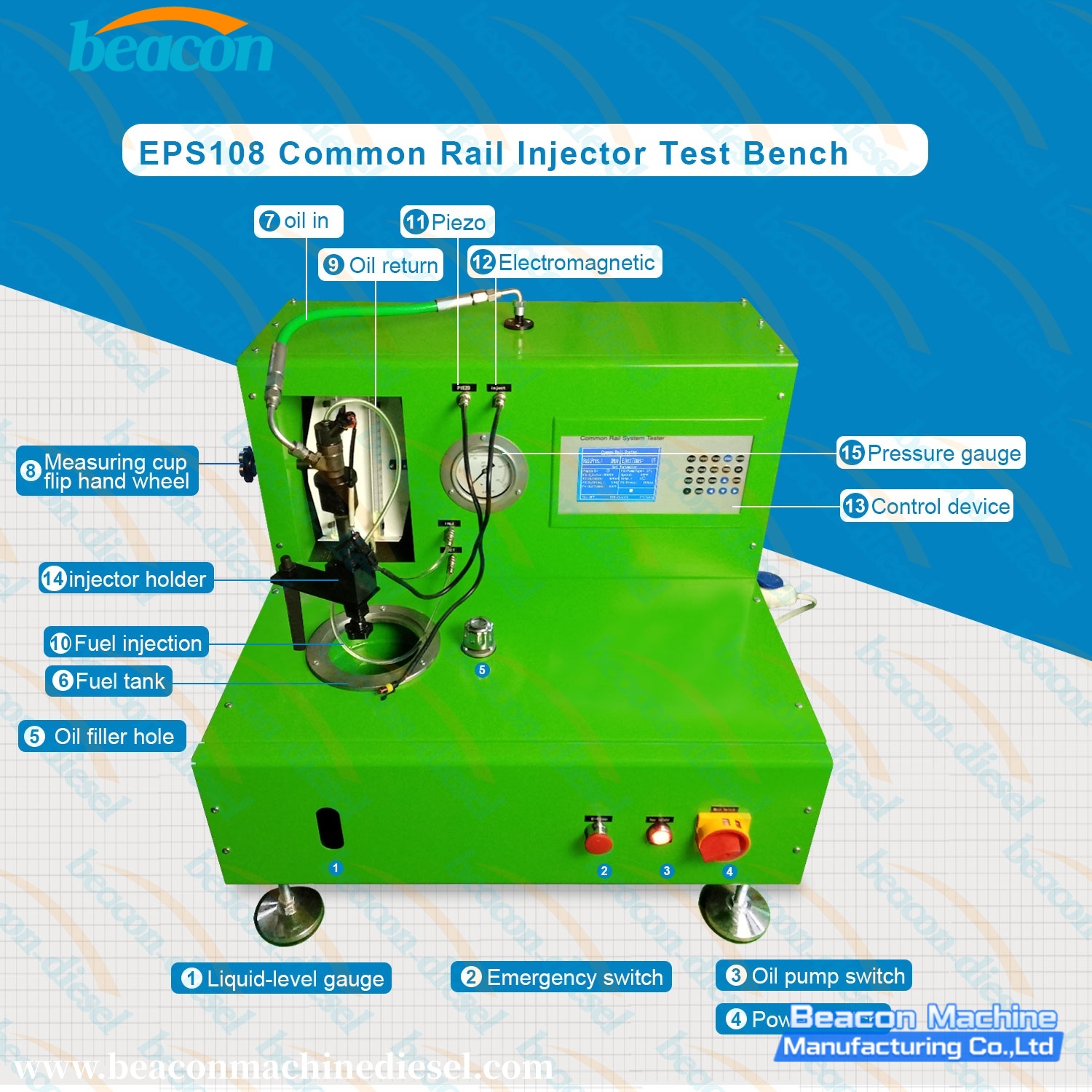

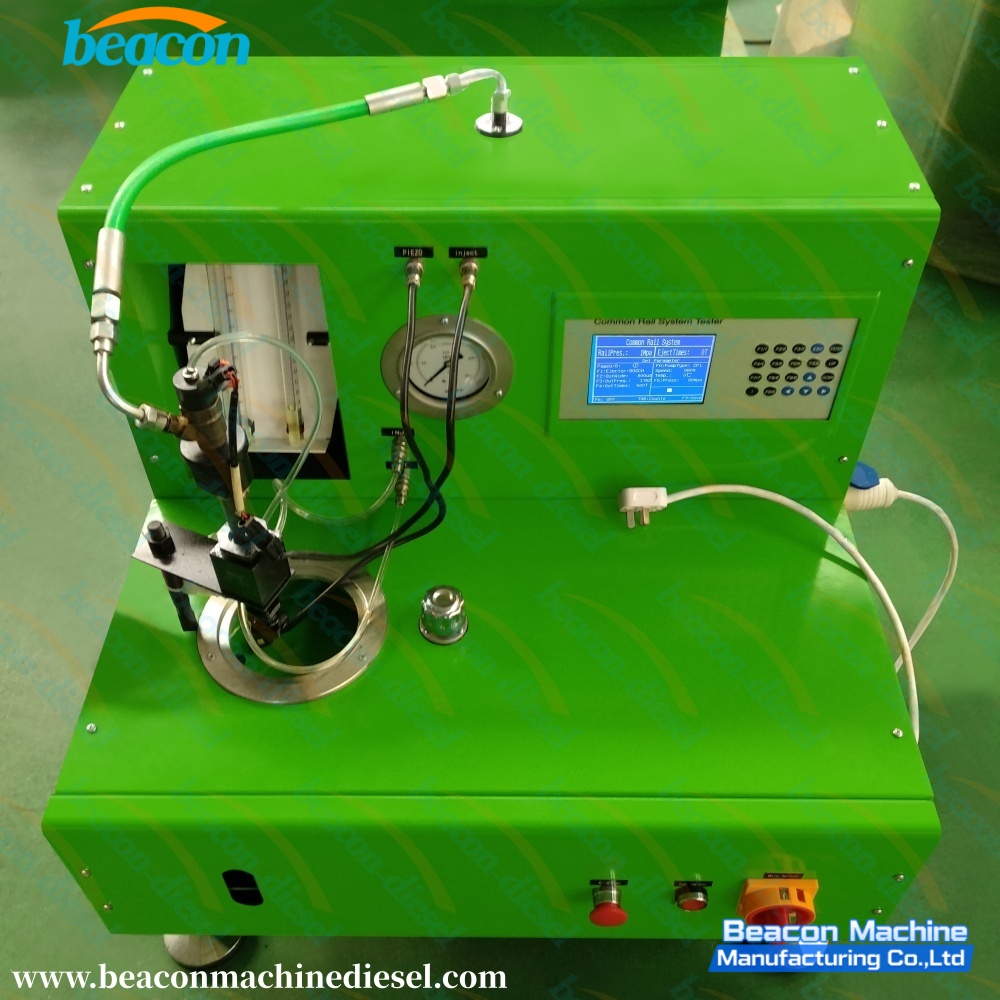

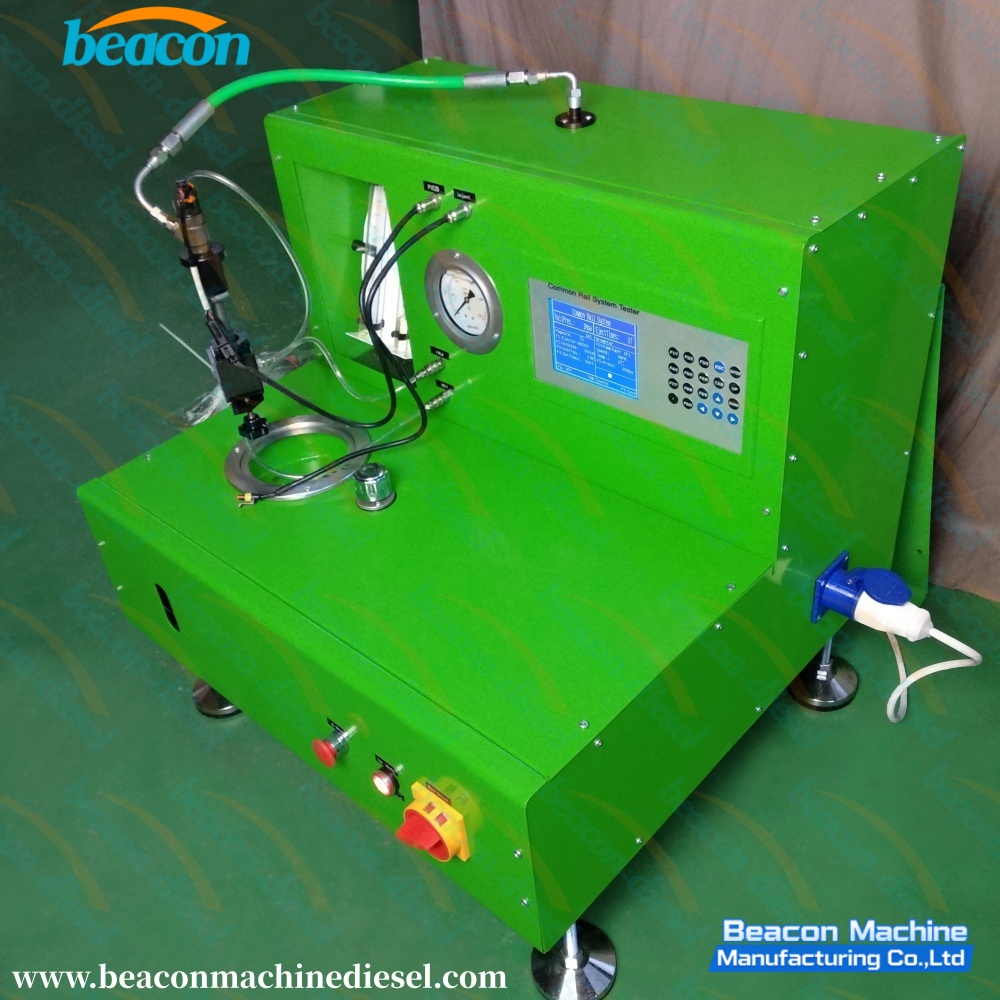

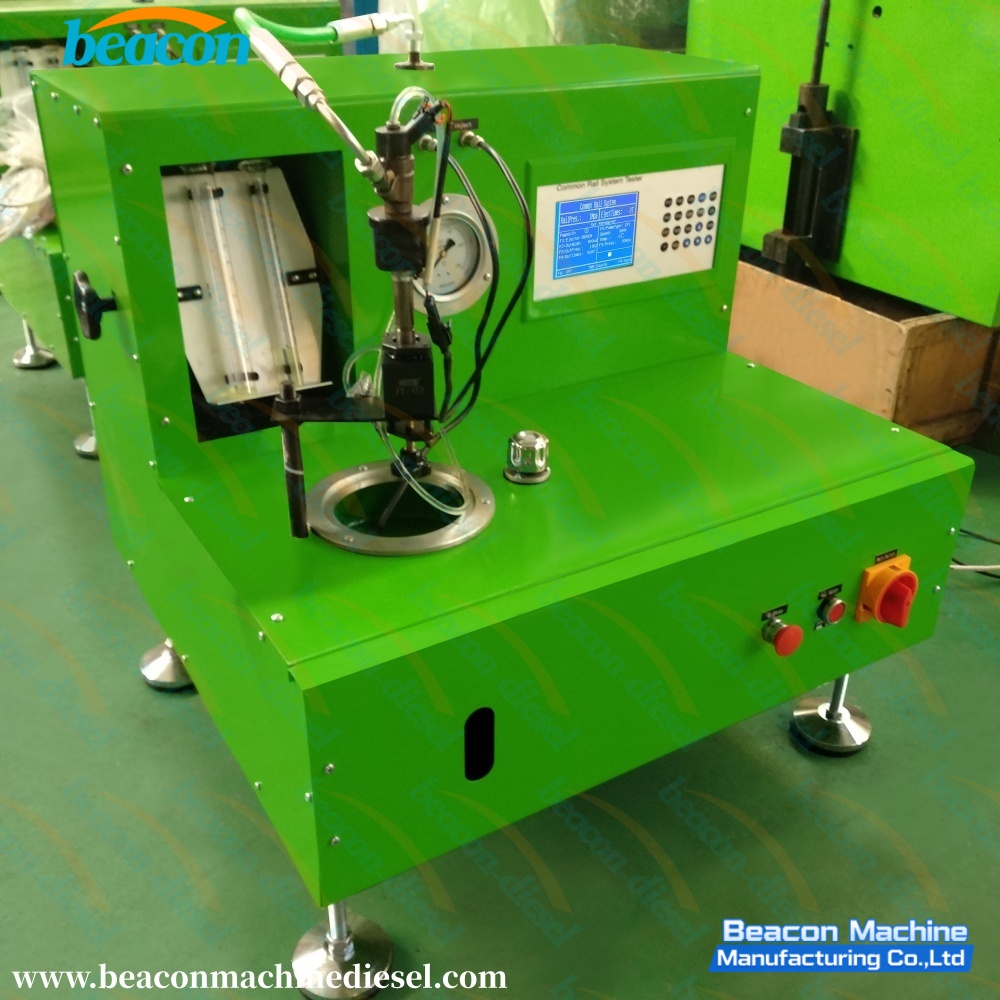

EPS108 Diesel Injector Testing Machine Common Rail Fuel Injector Test Bench

EPS108 common rail injector test bench, pressure controlled automatically, display the frequency and pluse at the screen. It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO. Advanced technology, steady performance, precise measurement.

Main parameter

1. output power:1.5KW
2. power voltage:220V 1phase
3. motor speed: 0-3000RPM
4. Oil pressure:0-2000bar
5. flow measure range: 0-600ml/1000times
6. flow measurement accuracy: 0.1ml.
*Test data from Beacon laboratory

Beacon Machine Car Products Inspection Tools Diesel Fuel CR Test Bench EPS108 For Common Rail Injector

EPS108 common rail injector test bench, pressure controlled automatically, display the frequency and pluse at the screen. It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO. Advanced technology, steady performance, precise measurement.

Injector testing: leakage, injection oil quantity and back oil quantity (pre-injection, Idling, emissions, full load)
