Specifications | Parameters |
Mass Scope of Workpiece (kg) | 5000 |
Max Diameter of Workpiece (mm) | 2400 |
Distance Between Two Support Bearings (mm) | Min:340 Max:2900 |
Journal Diameter Scope of Workpiece (mm) | 40~360 |
Max Distance between Driving Flange and Right Bearing Support (mm) | 3500 |
Rotational Speed of the Main Axis (r/min) | 180-1500Neutral speed regulating |
Motor Power (kw) | 15 |
Min Achievable Residual Unbalance Amount(emar) | 1g· mm/kg |

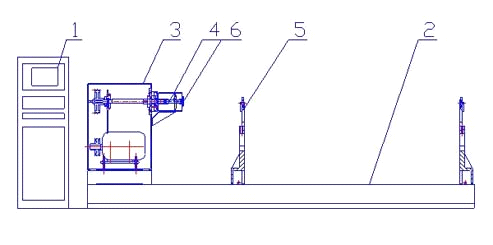

MACHINE SIZE:
LENGTH 5500* WIDTH 1300*HEIGHT1800MM
The size also can be design by your request.
