T8465 Brake Drum and Disc Lathe Brake Lathe for Trucks

Haz clic en el botón de WhatsApp para chatear o déjanos un mensaje, y nos pondremos en contacto contigo en un plazo de 12 horas.

Detalles

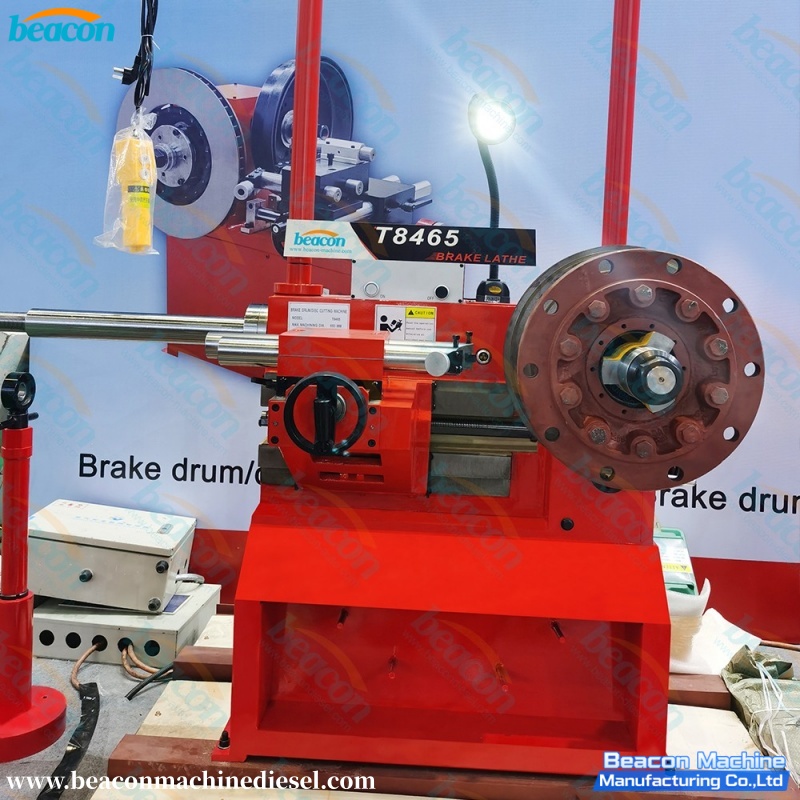

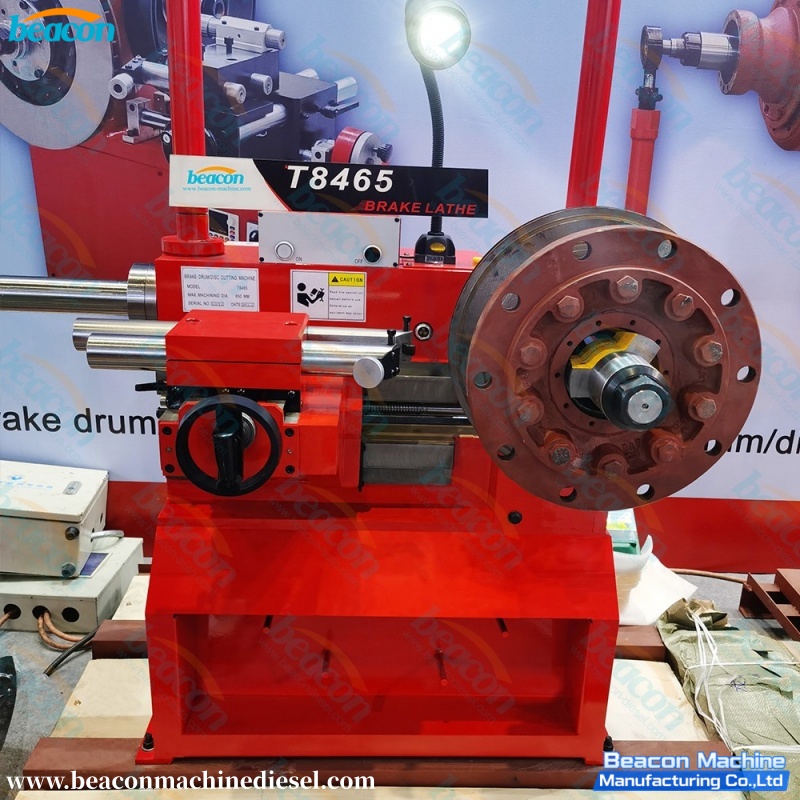

 T8465 Brake Drum and Disc Lathe Brake Lathe for Trucks
  The machine is a kind of lathe. It can fulfill the reparation of the brake drum, disc and shoe of auto-mobiles from mini-car to heavy trucks. The unusual feature of this equipment is its twin-spindle each other perpendicular structure. The brake drum/shoe can be cut on the first spindle and the brake disc can be cut on the second spindle. This equipment has higher rigidity, accurate workpiece positioning and is easy to operate. This equipment is fit up with out-board supporter to advance loading. Capability of first spindle. Besides, this equipment is fit up with set of crane which turn loading and unloading a heavy break drum into easier. If you adopt this equipment, it can help your enterprise set up higher reputation due to better. Process quality and lower your process cost.
 Brake Drum and Disc Lathe Brake Lathe

T8465 Brake Drum and Disc Lathe Brake Lathe for Trucks Ventaja

 Brake Drum and Disc Lathe Brake Lathe
 Brake Drum and Disc Lathe Brake Lathe

Parámetro

Item

T8465

Brake drum diameter

mm

180-650

Brake disc diameter

mm

≤500

Max travel of tool

mm

250

Spindle rotation speed

rpm

30,52,85

Feeding capacity

mm/r

0.16

Main motor

Kw

1.1

Size

mm

800*875*1050

Net weight

Kg

550
