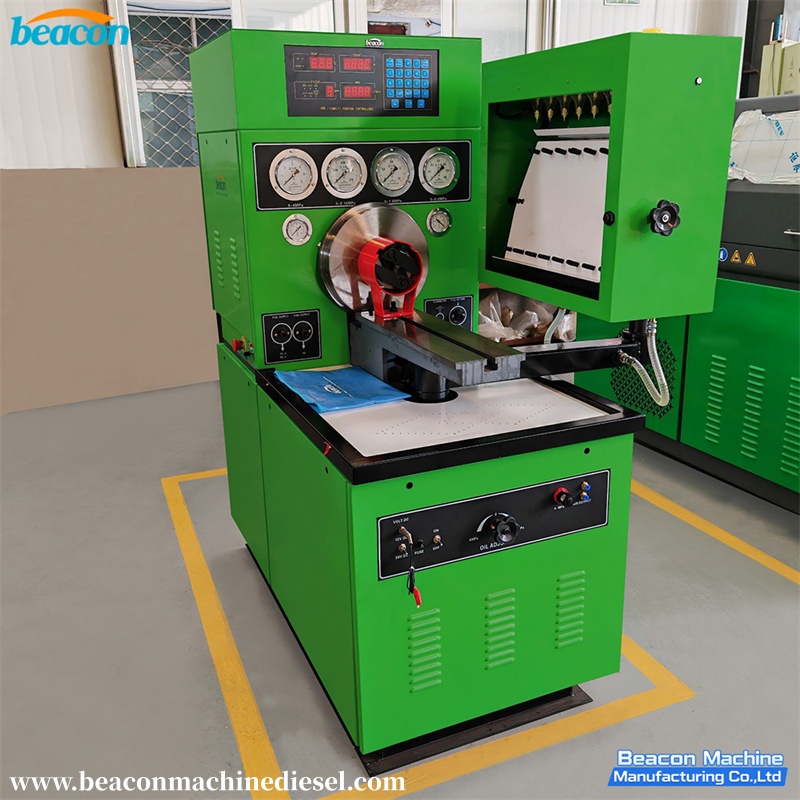

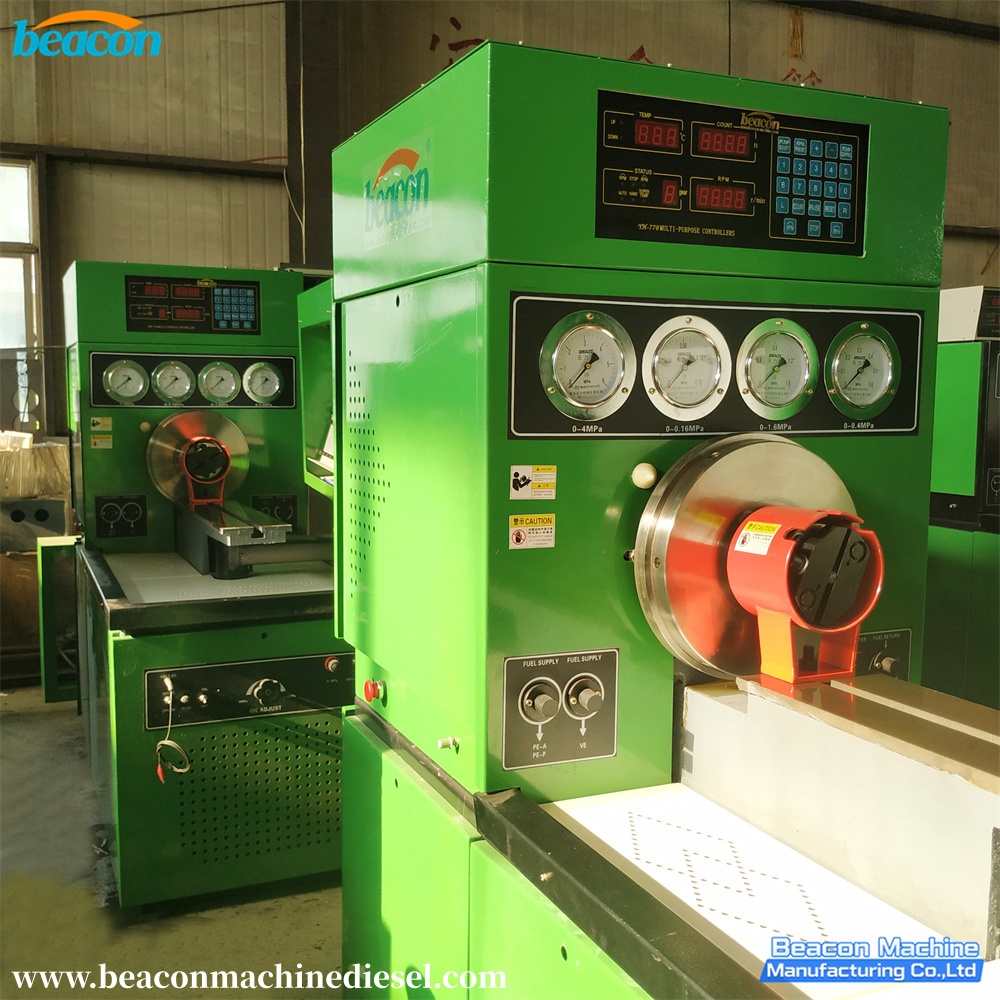

Mini12psb Mechanical Diesel Fuel Injection Pump Test Bench Calibration Machine

Haz clic en el botón de WhatsApp para chatear o déjanos un mensaje, y nos pondremos en contacto contigo en un plazo de 12 horas.

WhatsApp: +86-13375386297

Detalles

    The MINI 12PSB (Standard) is our classic, compact diesel injection pump test bench designed for efficiency and reliability.
Engineered for workshops that demand consistent performance without taking up excessive floor space, this 8-cylinder machine is powered by an industrial-grade A.C. Frequency Drive .
It provides a comprehensive solution for calibrating mechanical inline pumps and distributor pumps (VE).
With its robust color-customizable body (Green, Blue, Red, etc.) and integrated Forced Cooling System (R22) ,
the MINI 12PSB ensures stable operation even during long testing sessions.
Fuel Injection Pump Test Bench


Mini12psb Mechanical Diesel Fuel Injection Pump Test Bench Calibration Machine Ventaja

       Universal Compatibility: Capable of testing 8-cylinder mechanical pumps, measuring fuel delivery at any speed, and checking injection timing with precision. Stable Temperature Control: Features an advanced oil temperature control system (0～99.9℃) with R22 refrigerant forced cooling , ensuring test fluid properties remain constant for accurate results. Dual-Voltage Flexibility: Available in both 220V (Single/3-Phase) and 380V (3-Phase) configurations with power options of 7.5KW or 11KW to suit your workshop's power grid. Cost-Effective Durability: Built with a simplified, rugged structure that reduces maintenance costs while offering all 12 essential testing functions, including solenoid valve testing (12V/24V).
Fuel Injection Pump Test Bench

Fuel Injection Pump Test Bench
Fuel Injection Pump Test Bench
Fuel Injection Pump Test Bench

Parámetro

Technical ParameterSpecification
Compatible ModelsMINI 12PSB, 12PSB-A, 12PSB-S
Number of Cylinders8 Cylinders
Motor Power7.5KW or 11KW (Selectable)
RPM Speed Range0 - 4000 r/min
RPM Accuracy± 1 r/min
Power Input380V 3-Phase / 220V 3-Phase / 220V 1-Phase
Frequency DriveA.C. Inverter Control
Fuel Tank Capacity40 Liters
Oil Pressure (High)0 - 4 Mpa
Oil Pressure (Low)0 - 0.4 Mpa
Internal Pressure0 - 1.6 Mpa
DC Supply12V / 24V

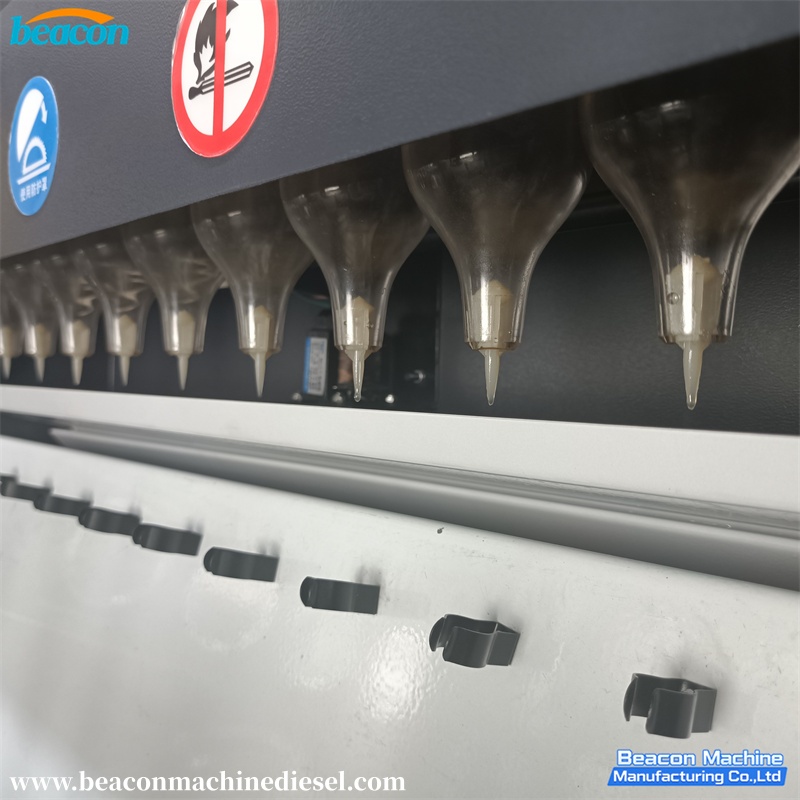

Measuring Cylinders45ml & 150ml (Glass)
Stroke Counter50 - 9999 Strokes
Temperature Control40℃ ± 2℃ (Range 0-99.9℃)
Cooling MethodForced Cooling (Refrigerant R22)
DimensionsStandard Compact Size

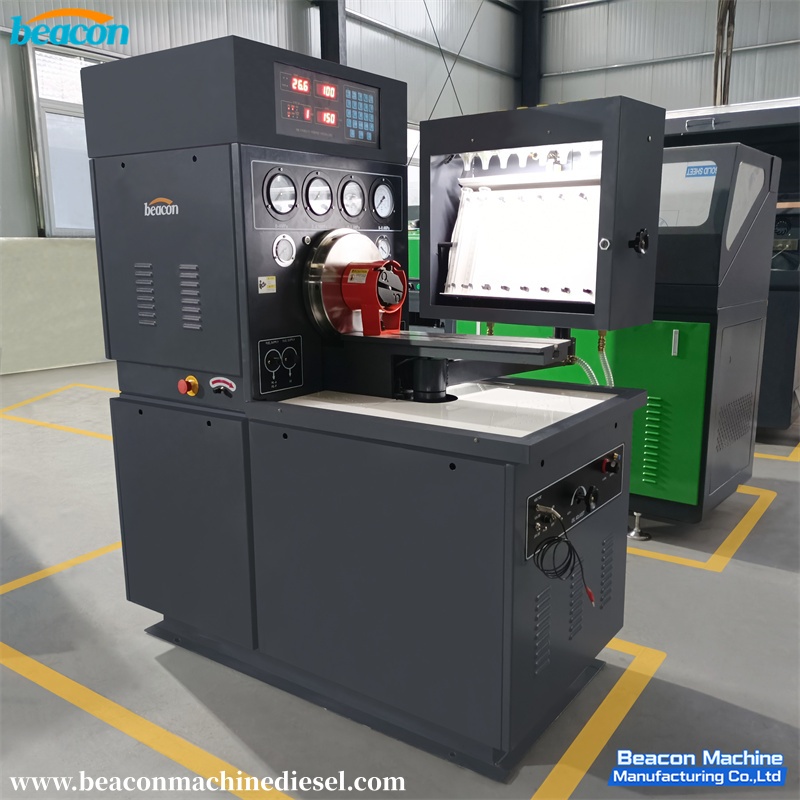

Available ColorsGreen, Red, Blue, Yellow, Grey, Black

Application Scenarios

  1. Vehicle Repair Shops: Calibration of pumps for older trucks and diesel cars.

  2. Agricultural Maintenance: Testing pumps for tractors and harvesters.

  3. Marine/Generator Service: Maintaining mechanical pumps for small vessels and gensets.

  4. Vocational Training: Educational use for teaching diesel injection principles.

FAQ

Q: Can I change the color of the machine?
A: Yes, we offer Green, Red, Black, Blue, Grey, and Yellow. Please specify your preference when ordering.

Q: What is the difference between 7.5KW and 11KW?
A: 7.5KW is sufficient for most standard automotive pumps. 11KW provides higher torque, recommended for larger truck pumps or heavy-duty use.

Q: Does this machine test Common Rail pumps?
A: No, the MINI 12PSB series is for Mechanical Pumps (Inline, VE, Distributor). For Common Rail, please check our CRS series.


video

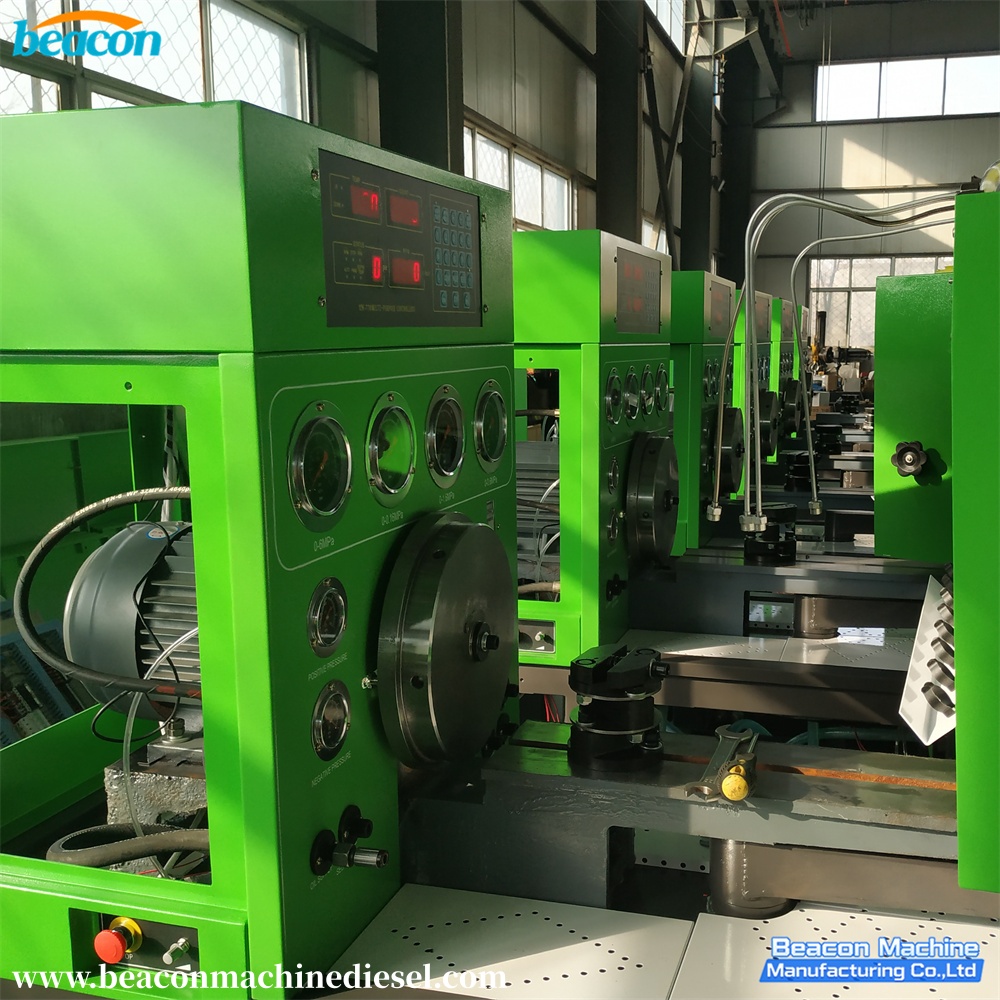

Nuestra fábrica
