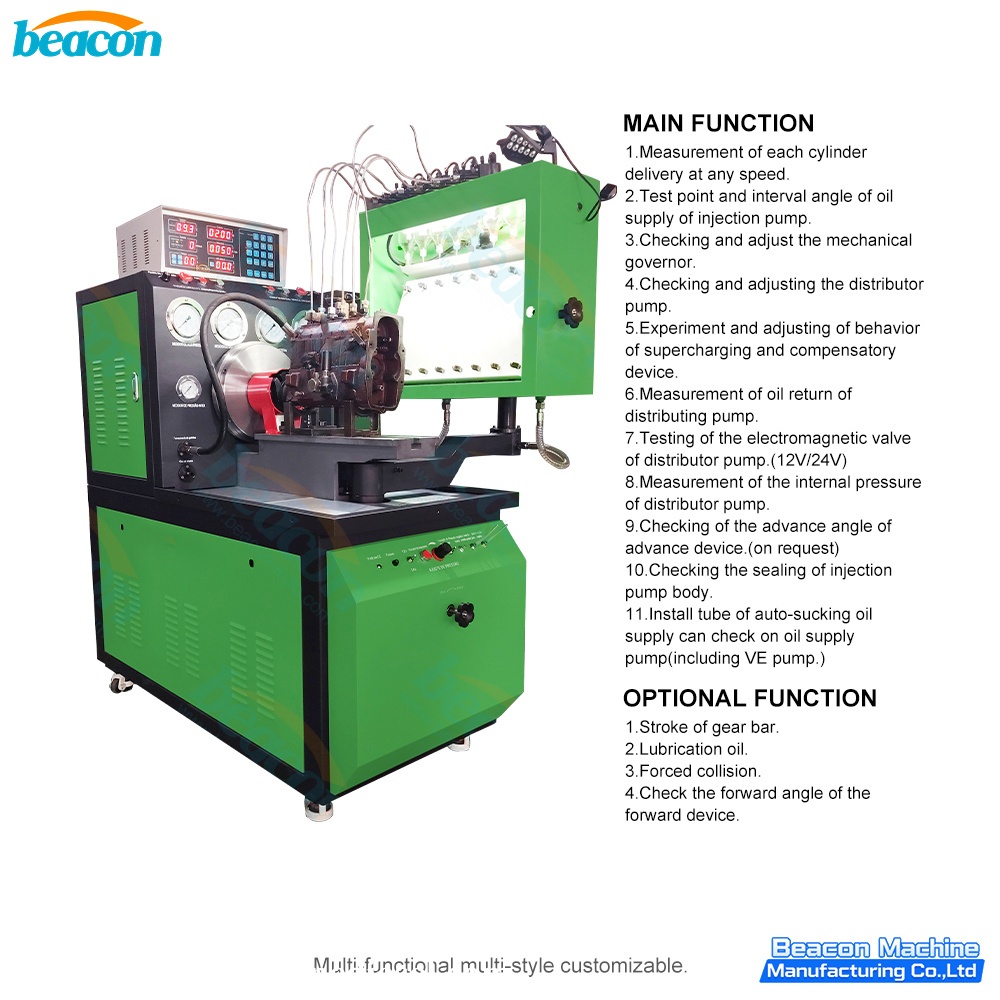

MINI12PSB-S 8 Cylinder Mechanical Conventional Injection Pump EDC Inline VE Pump Test Bench

Haz clic en el botón de WhatsApp para chatear o déjanos un mensaje, y nos pondremos en contacto contigo en un plazo de 12 horas.

WhatsApp: +86-13375386297

Detalles

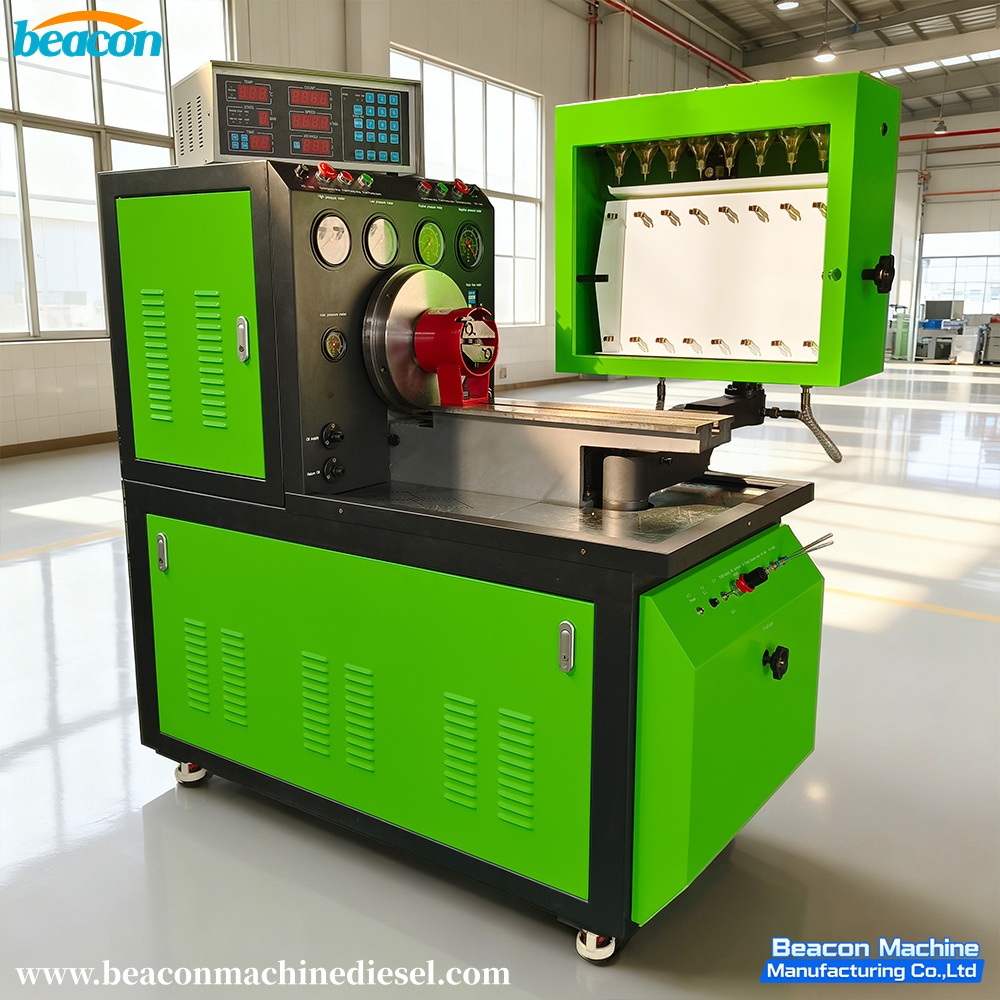

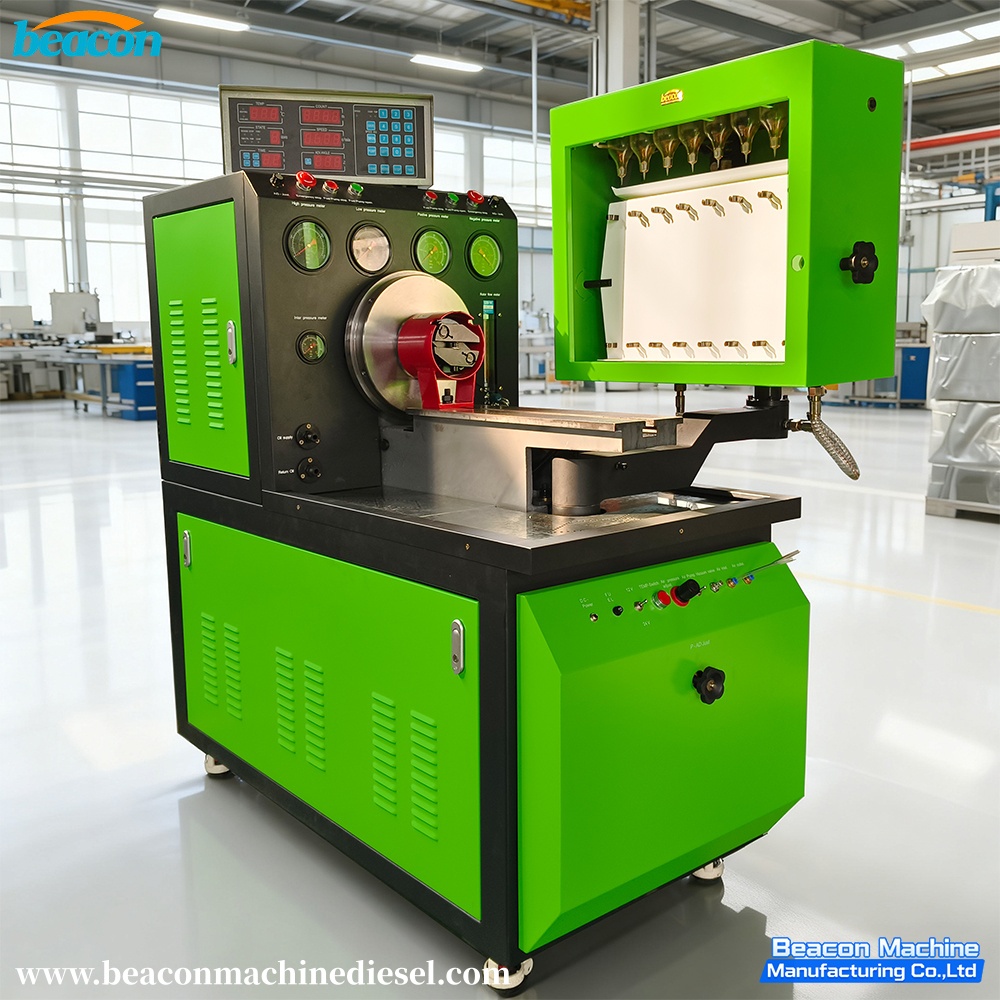

   MINI 12PSB-S is the precision-focused model in our lineup, tailored for calibration laboratories and high-end repair shops. It distinguishes itself with enhanced measurement accuracy for stroke travel and pump body sealing . The S-Series utilizes a high-sensitivity Digital Tachometer (Accuracy ±1 R.P.M) and a precise Stroke Counter (100-1200 steps) to ensure every pump meets strict factory specifications. Whether checking the advance angle or adjusting the behavior of supercharging devices, the 12PSB-S delivers exact data.

Mechanical Conventional Injection Pump EDC Inline VE Pump Test Bench
Mechanical Conventional Injection Pump EDC Inline VE Pump Test Bench

MINI12PSB-S 8 Cylinder Mechanical Conventional Injection Pump EDC Inline VE Pump Test Bench Ventaja

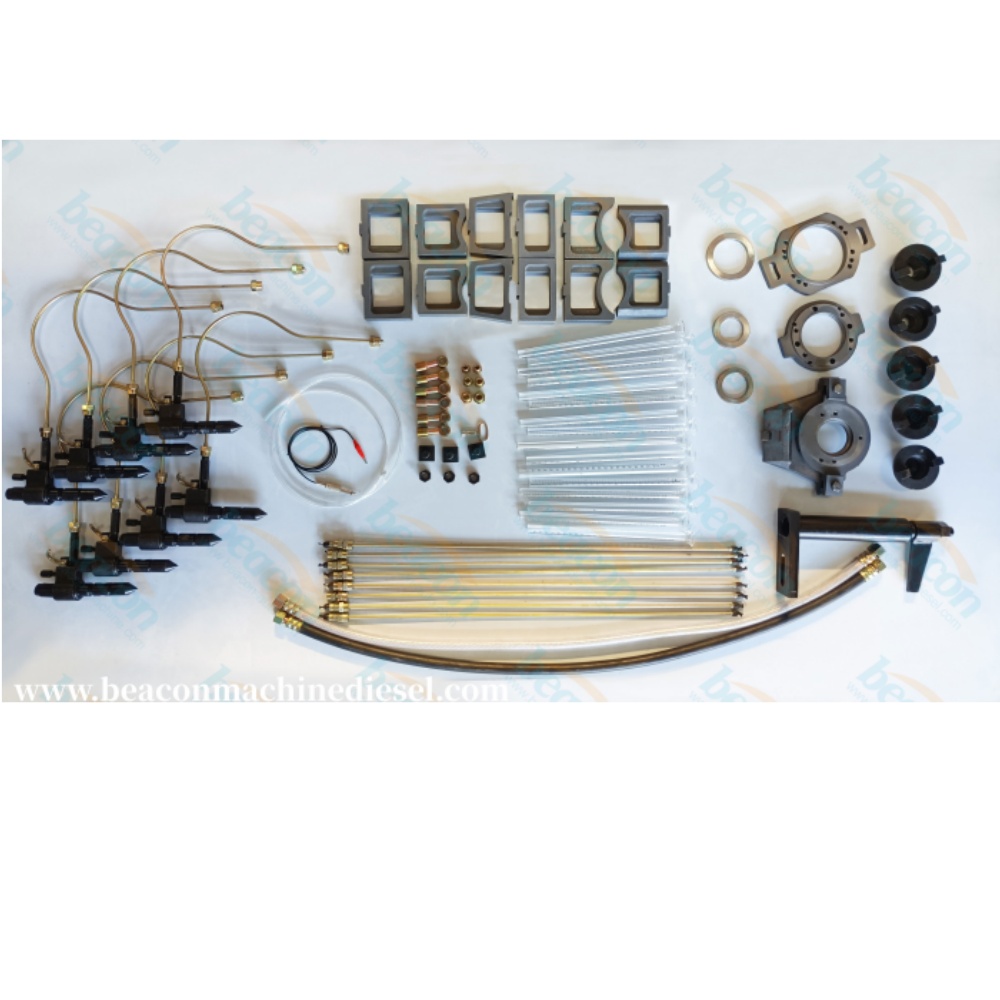

      High-Precision Calibration: Features a digital RPM display with ±1 R.P.M accuracy and a 10-gear preset speed selector plus manual fine-tuning knob for exact control. Sealing & Pressure Mastery: Specialized function for checking the sealing of the injection pump body, ensuring no leaks exist before the pump leaves the bench. Distributor Pump Specialist: Includes advanced capabilities for measuring the oil return of distributing pumps and testing the travel of the stroke (on request). Complete Accessory Kit: Comes standard with an auto-sucking oil supply tube installation kit and mounting flanges, making it ready for immediate use on a wide range of pump brands.

Mechanical Conventional Injection Pump EDC Inline VE Pump Test Bench
Mechanical Conventional Injection Pump EDC Inline VE Pump Test Bench
Mechanical Conventional Injection Pump EDC Inline VE Pump Test Bench

Parámetro

Technical ParameterSpecification
Compatible ModelsMINI 12PSB, 12PSB-A, 12PSB-S
Number of Cylinders8 Cylinders
Motor Power7.5KW or 11KW (Selectable)
RPM Speed Range0 - 4000 r/min
RPM Accuracy± 1 r/min
Power Input380V 3-Phase / 220V 3-Phase / 220V 1-Phase
Frequency DriveA.C. Inverter Control
Fuel Tank Capacity40 Liters
Oil Pressure (High)0 - 4 Mpa
Oil Pressure (Low)0 - 0.4 Mpa
Internal Pressure0 - 1.6 Mpa
DC Supply12V / 24V
Measuring Cylinders45ml & 150ml (Glass)
Stroke Counter50 - 9999 Strokes
Temperature Control40℃ ± 2℃ (Range 0-99.9℃)
Cooling MethodForced Cooling (Refrigerant R22)
DimensionsStandard Compact Size
Available ColorsGreen, Red, Blue, Yellow, Grey, Black

Application Scenarios

  1. Vehicle Repair Shops: Calibration of pumps for older trucks and diesel cars.

  2. Agricultural Maintenance: Testing pumps for tractors and harvesters.

  3. Marine/Generator Service: Maintaining mechanical pumps for small vessels and gensets.

  4. Vocational Training: Educational use for teaching diesel injection principles.

FAQ

Q: Can I change the color of the machine?
A: Yes, we offer Green, Red, Black, Blue, Grey, and Yellow. Please specify your preference when ordering.

Q: What is the difference between 7.5KW and 11KW?
A: 7.5KW is sufficient for most standard automotive pumps. 11KW provides higher torque, recommended for larger truck pumps or heavy-duty use.

Q: Does this machine test Common Rail pumps?
A: No, the MINI 12PSB series is for Mechanical Pumps (Inline, VE, Distributor). For Common Rail, please check our CRS series.
