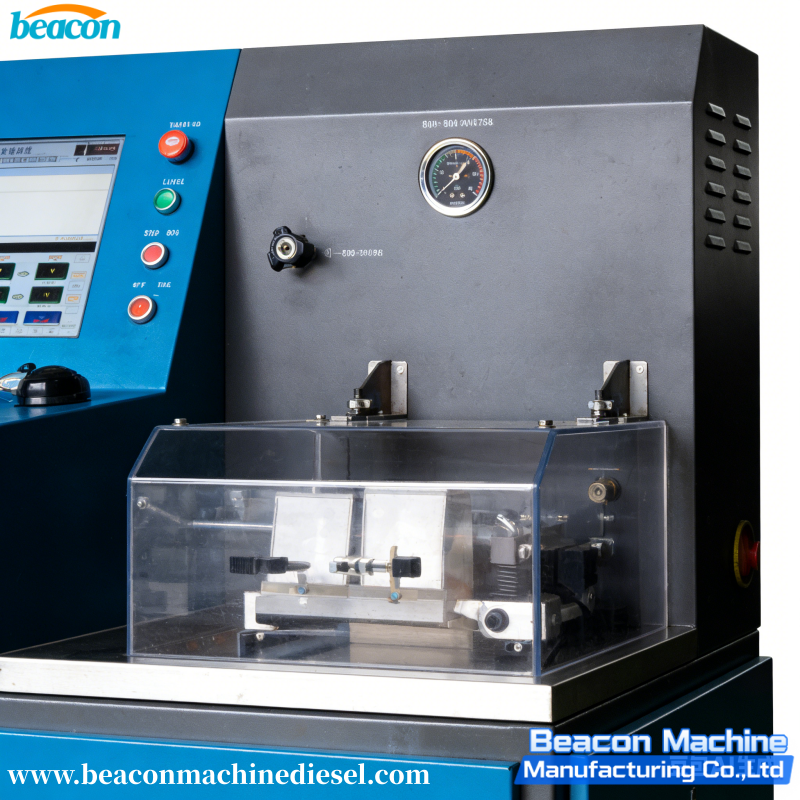

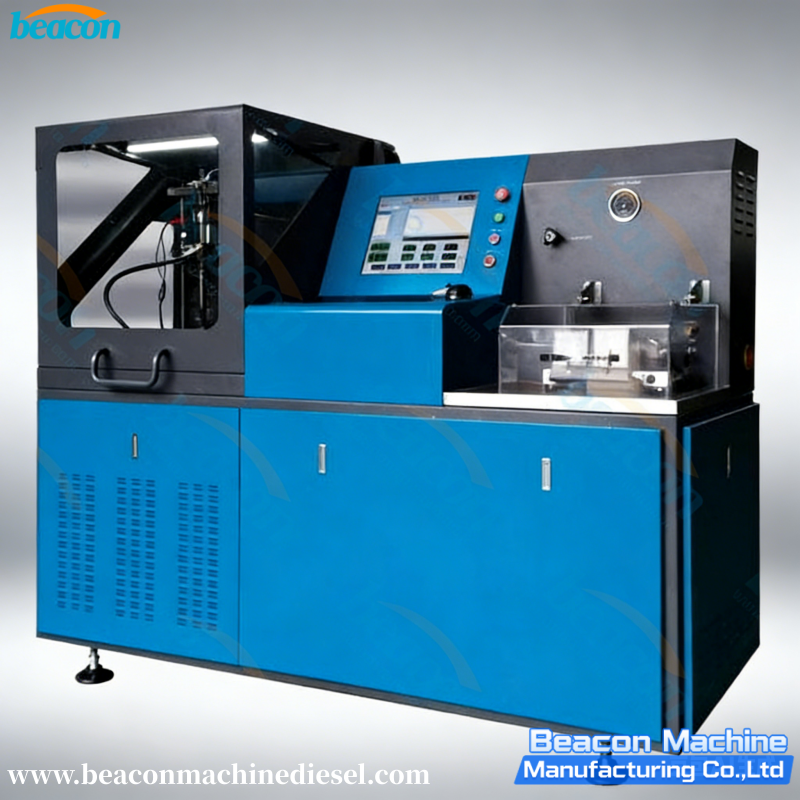

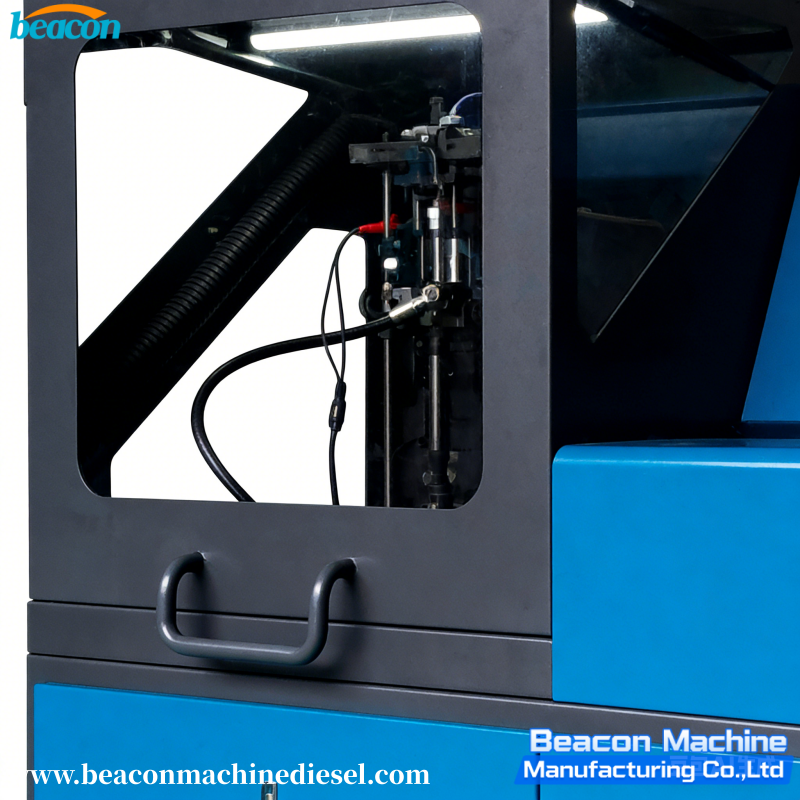

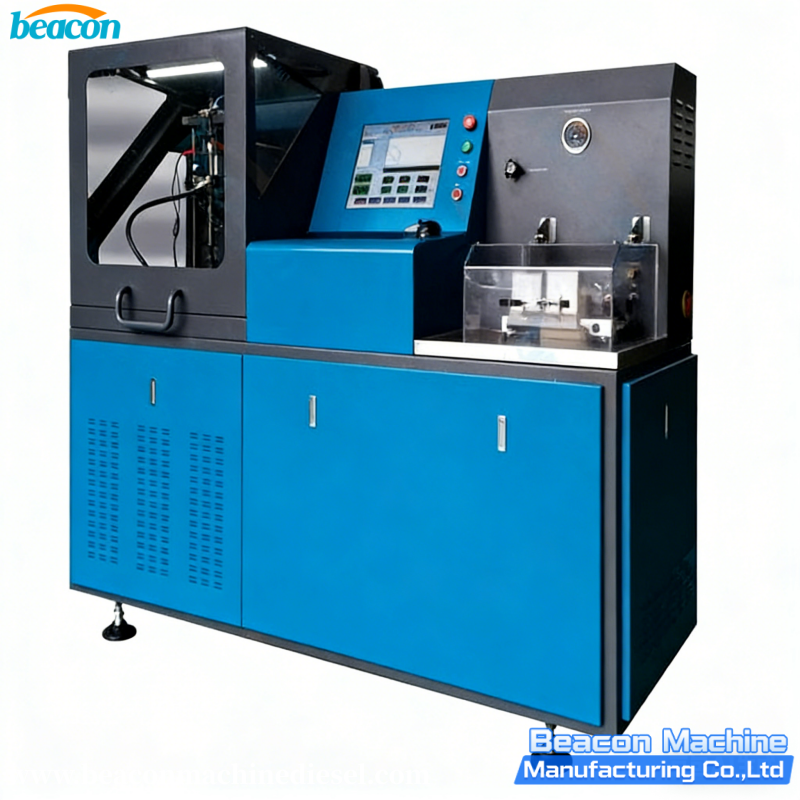

EUS900 EUI EUP HEUI Injector Test Bench With Cambox

EUS900 EUI EUP HEUI Injector Test Bench With Cambox

New EUS900 includes two monitor screens and two software, test EUI EUP and HEUI injector at the same time.

Main configurations:
1. High-precision cam drive (BIP function optional)
2. Different lift special cam and injector adapters for many kind products
3. Includes two flow meters
4. Middle pressure common rail special bracket.
5. Special high - pressure piston pump
6. Industrial air-conditioner refrigeration, dual temperature control fuel tank
7. Output power 15kw, there are different power supply.

Features:
1. Include diesel hydraulic implementation, consistent with the fuel injection to prevent the mixture of diesel and lube oil, cause test conditions change and then affect the test accuracy.
2. Different types of special-purpose cam not only ensures the cam generation but also ensures the cam generation curve.

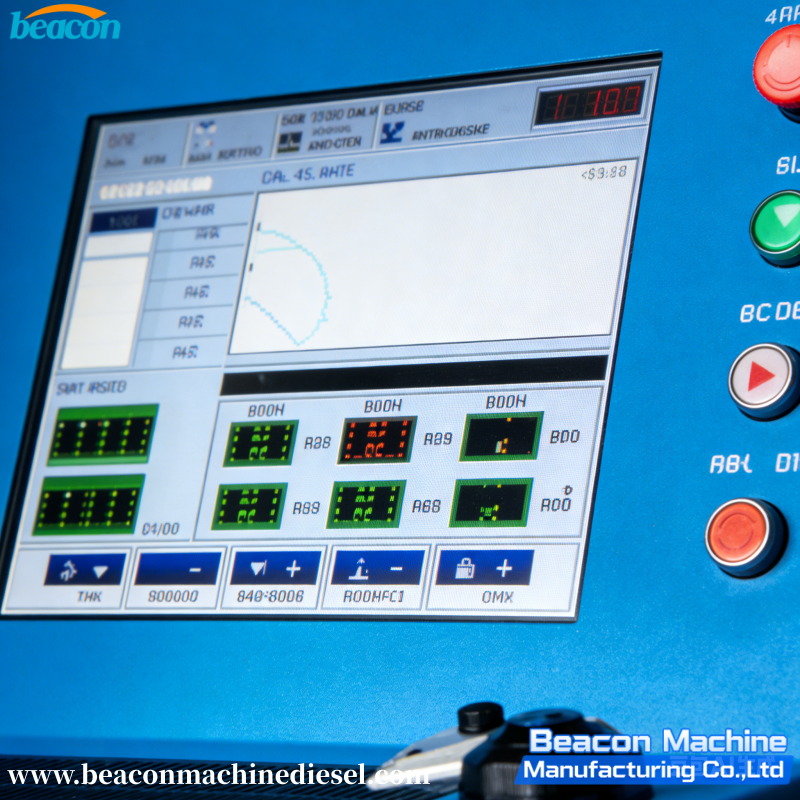

3. Embedded industrial computer systems and user-friendly operation design to ensure the control system stability and accuracy.
4. Include Chinese, English, German, Spanish, French, Russian and Portuguese operating interface, which is proper for global using all around the world.
5. Database (test plan) update on-line.

EUS900 EUI EUP HEUI Injector Test Bench With Cambox

Functions and characteristics :
1.Automatically test C7/C9/C-9,C3126/3408,Ford Power Stroke 6.0L 3412E/ISUZU and so on middle pressure common rail product
2.Automatically test the injector seal, actuation point, pilot injection, medium speed, maximum load, the maximum test pressure is 2600 bar
3.Automatically test Bosch, Carter, CUMMINS, DDC, Delphi, Mercedes-Benz, Volvo, EUI/EUP (Electronic Unit Injectors/Electronic Unit Pumps) and dual-valve E3,CUMMINS ISX and other special products.
4.Automatically test various solenoid valve injector and piezo injector.
5.Automatically test the performance of injector solenoid valve. 6.Automatically test voltage-current curve of the injector.
