BD-500 Car Brake Disc Drum Lathe 220V Skimming Machine for Brake Discs

Haz clic en el botón de WhatsApp para chatear o déjanos un mensaje, y nos pondremos en contacto contigo en un plazo de 12 horas.

Detalles

BD-500 Car Brake Disc Drum Lathe 220V Skimming Machine

Product Introduction

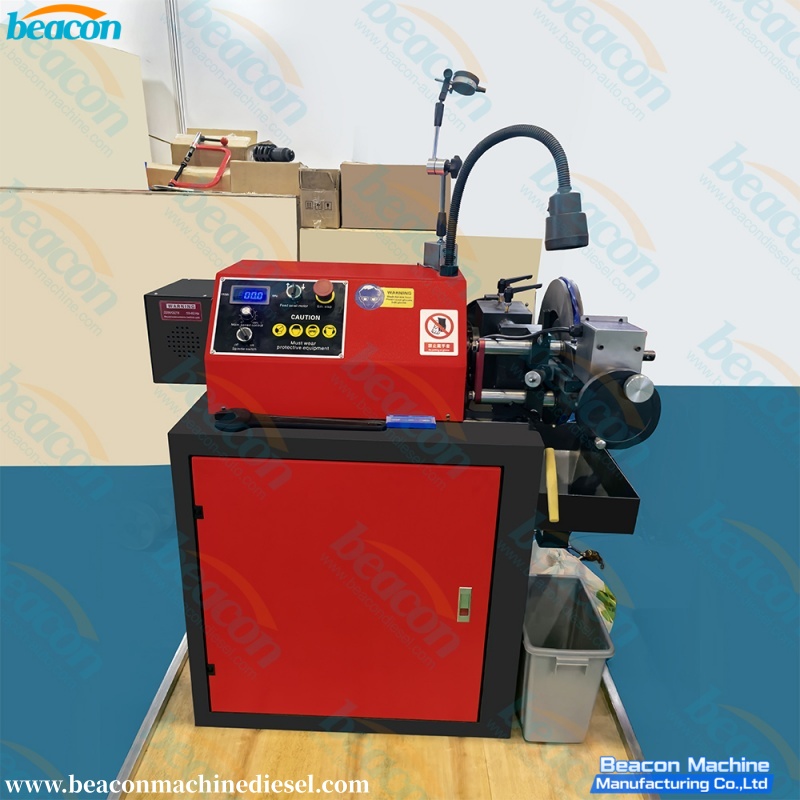

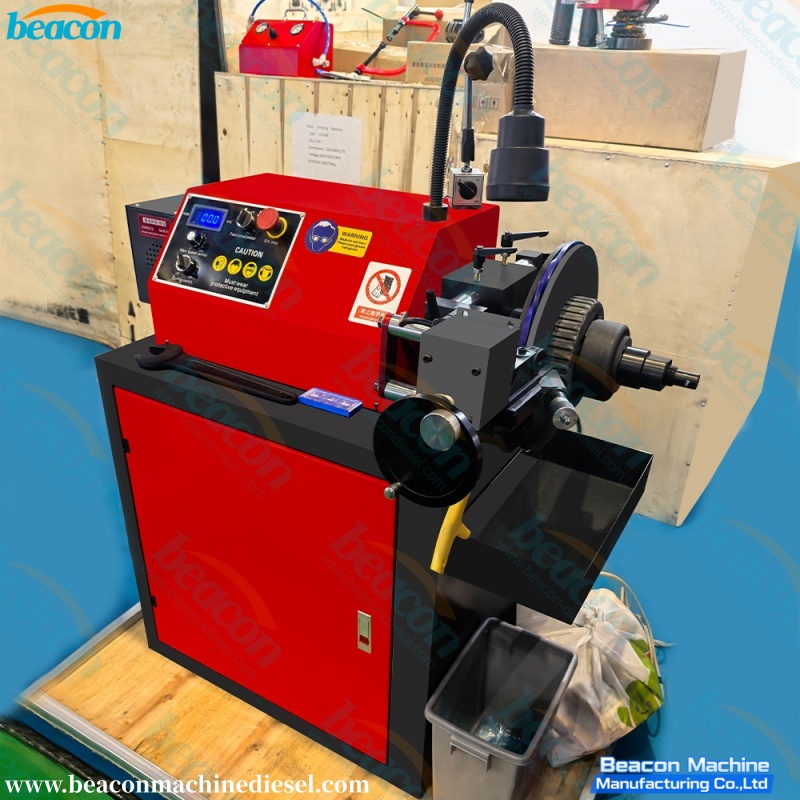

The BD-500 Brake Disc Lathe is a professional high-speed, high-precision equipment designed to solve common braking problems such as brake jitter, noise, and vibration caused by uneven disc surfaces. Unlike on-car lathes, this bench-type machine offers superior stability for resurfacing detached brake discs. It is engineered to restore the brake disc's flatness effectively, ensuring driving safety. Equipped with a universal clamp system , the BD-500 can adapt to a wide range of vehicle models, making it an essential tool for auto repair shops looking to improve service quality and efficiency.
BD-500 Car Brake Disc Drum Lathe 220V Skimming Machine for Brake Discs

BD-500 Car Brake Disc Drum Lathe 220V Skimming Machine for Brake Discs Ventaja

BD-500 High Precision Brake Disc Lathe Advantage

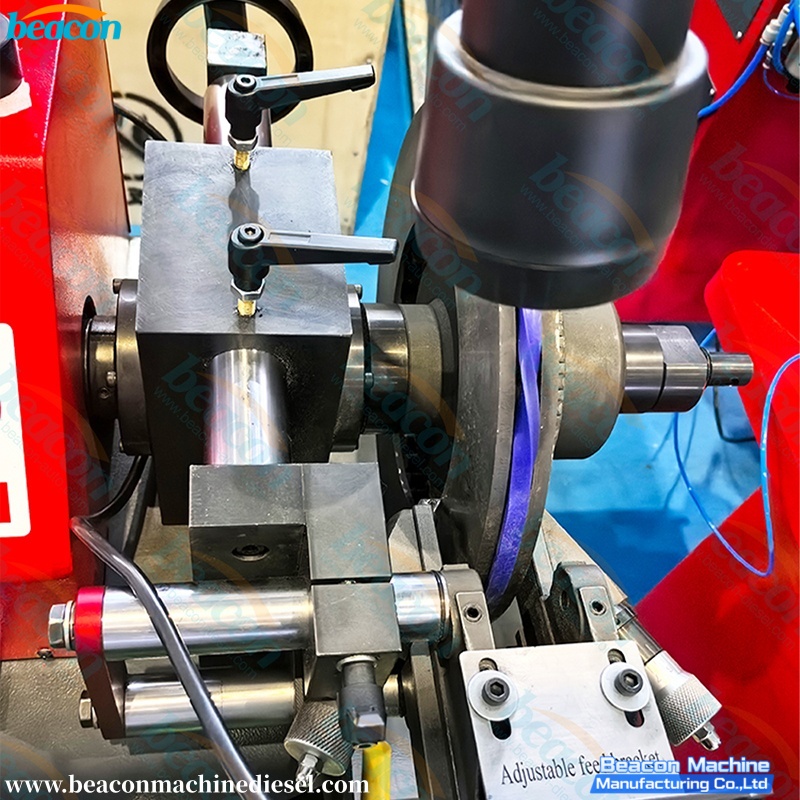

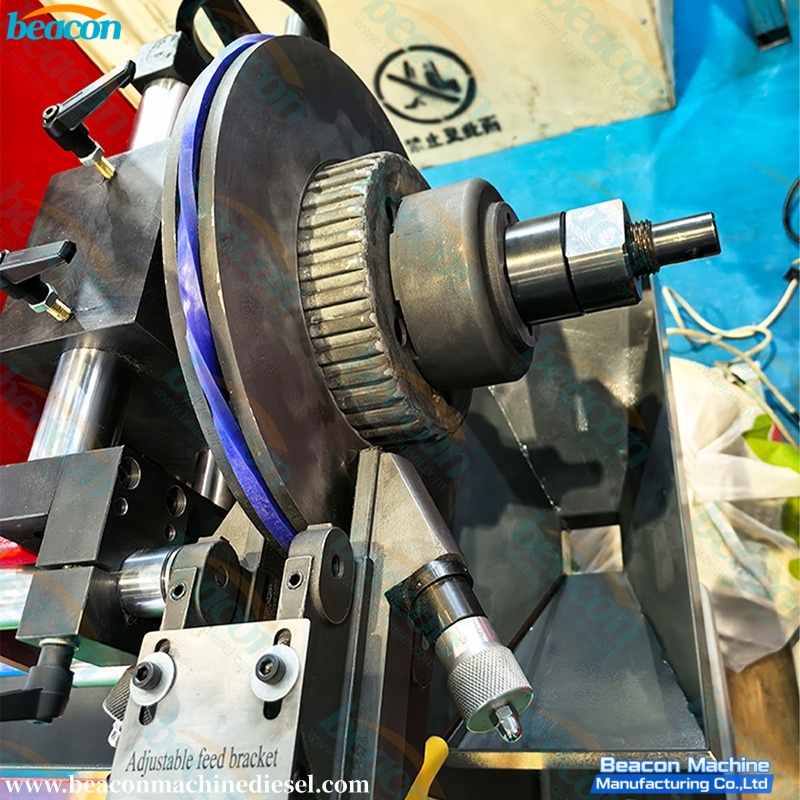

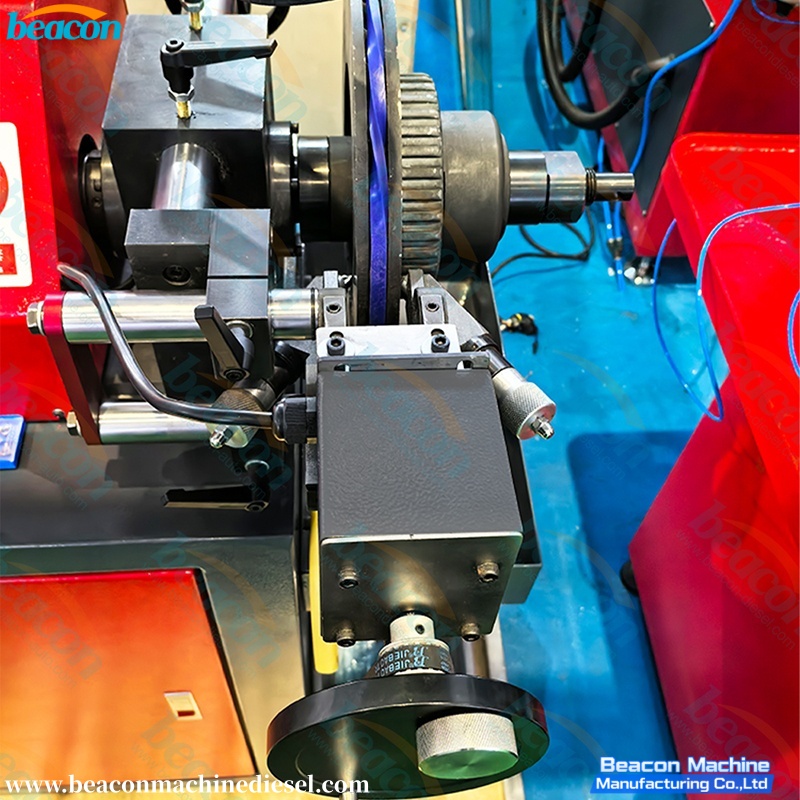

High Compatibility: Comes standard with a universal clamp , eliminating the need for multiple specific adapters and allowing it to suit the needs of various vehicle models (cars, SUVs, light trucks).
Precision Resurfacing: Delivers high-precision cutting with a fine cutting depth (0.005-0.015mm), effectively eliminating brake pedal pulsation and noise.

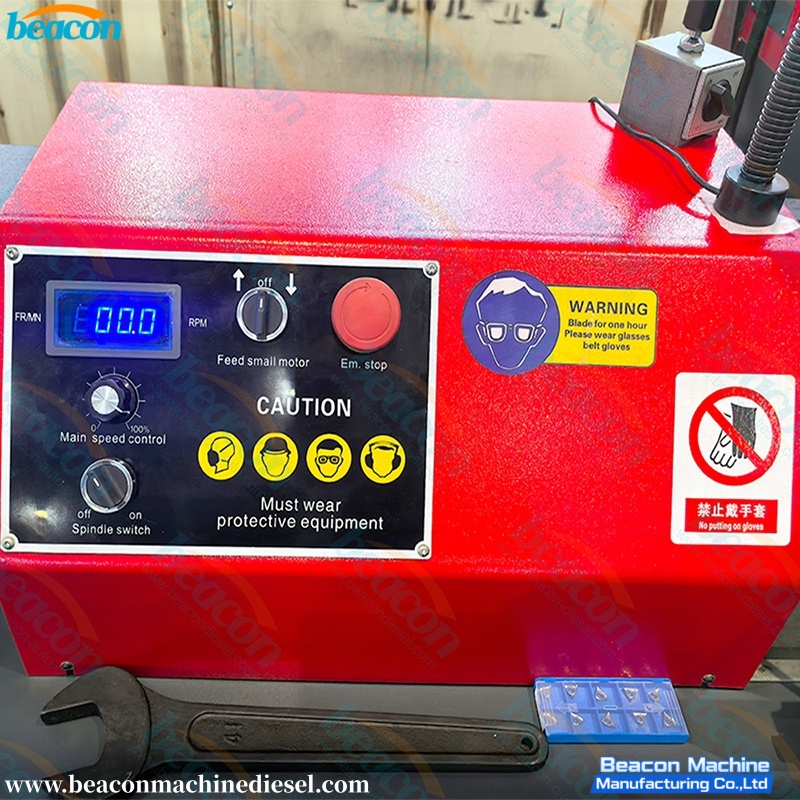

Variable Speed Control: Features an adjustable spindle rotation speed of 0-120 r/min , allowing the operator to choose the optimal speed for different disc hardness levels and finish requirements.
Cost & Time Saving: Greatly shortens maintenance time by refurbishing existing discs instead of replacing them, saving costs for both the workshop and the car owner.
Large Capacity: Capable of handling brake discs with a maximum diameter of 500mm and a thickness of 40mm.

BD-500 Car Brake Disc Drum Lathe 220V Skimming Machine for Brake Discs
BD-500 Car Brake Disc Drum Lathe 220V Skimming Machine for Brake Discs
BD-500 Car Brake Disc Drum Lathe 220V Skimming Machine for Brake Discs

Parámetro

Model

BD-500

Length

1000mm

Width

800mm

Height

1100mm

Maximum diameter of brake disc

500mm

Thickness of brake disc

40mm

Cutting depth per knob

0.005-0.015

Motor

750mm

Power supply

AC220V1P

Speedle rotation speed

0-120r/min

Packing dimensions

1150*960*1160mm

N.w ( approx )

145kg
