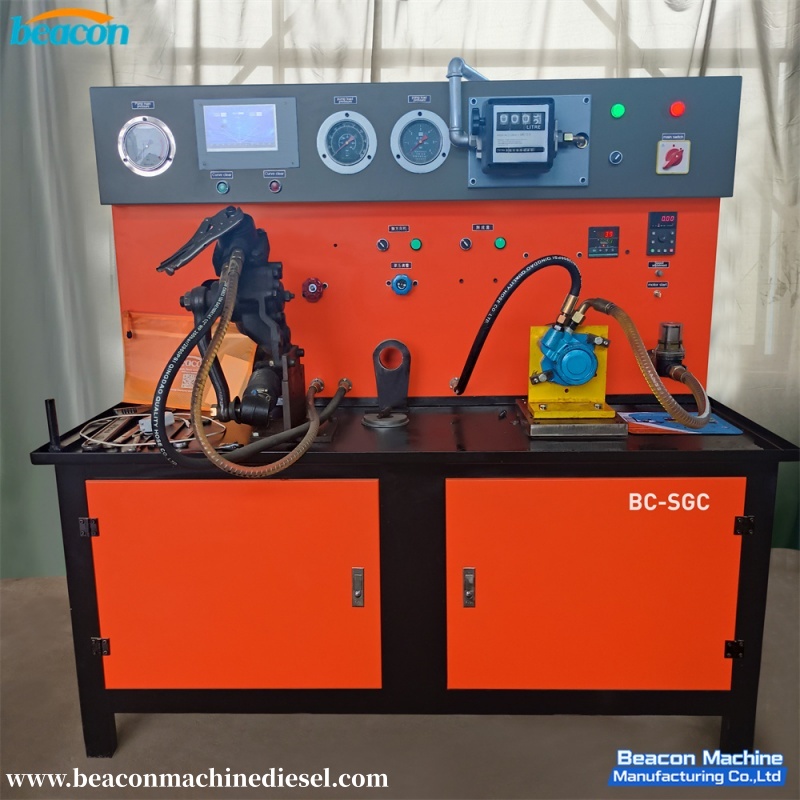

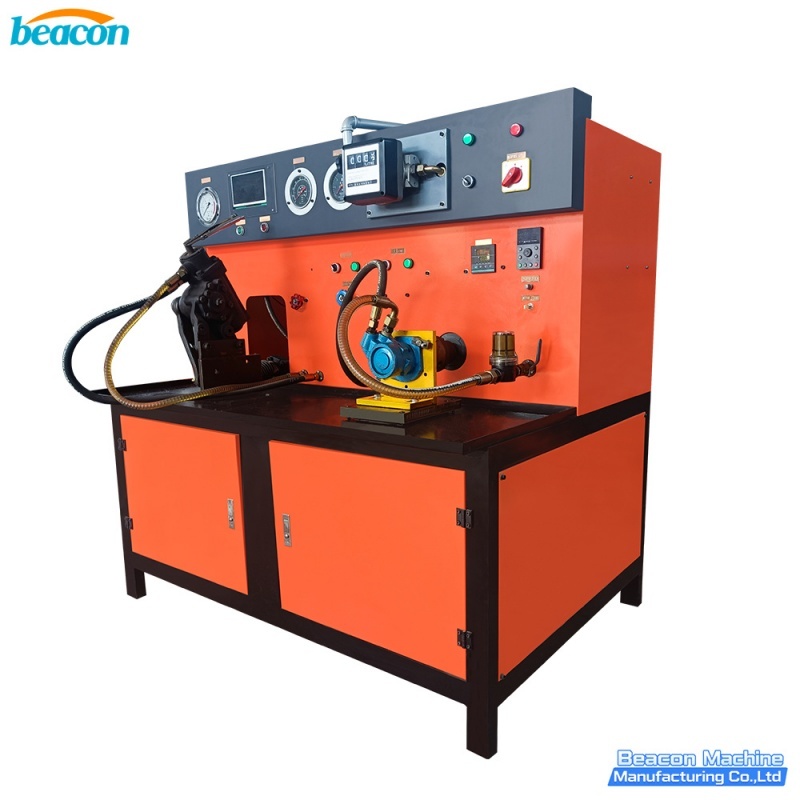

BC-SGC Hydraulic Steering Gear Power Steering Pump Test Bench

BC-SGC Hydraulic Steering Gear Power Steering Pump Test Bench

Product Introduction
The BC-SGC Hydraulic Steering Gear & Power Steering Pump Test Bench is a comprehensive diagnostic station designed for automotive hydraulic steering systems. Powered by a 5.5KW Motor with a matching Variable Frequency Drive (Inverter), it provides precise speed simulation for testing.

This machine serves a dual purpose:
For Power Steering Pumps: It accurately tests the working pressure (up to 15MPa) and flow rate (0-50L/min) to verify pump efficiency.

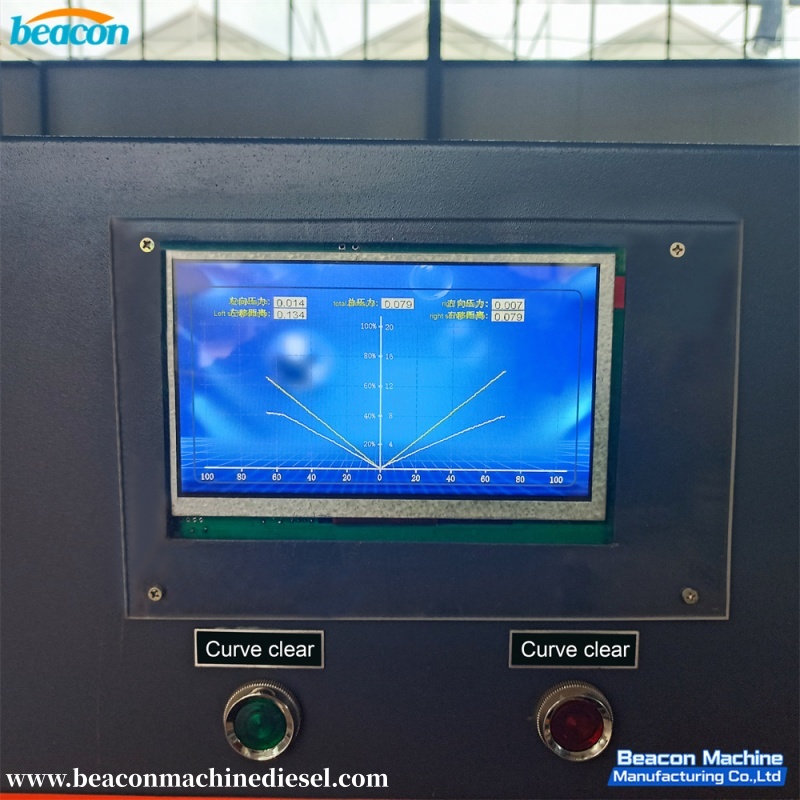

For Steering Gears (Racks/Boxes): It effectively simulates real-world driving conditions to diagnose complex mechanical and hydraulic faults. It is capable of detecting issues such as steering pull (single-side heaviness), drifting, mechanical binding (sticking/jamming) , and abnormal overheating . Additionally, it analyzes the symmetry of the assistance curve to ensure balanced steering performance.

BC-SGC Hydraulic Steering Gear Power Steering Pump Test Bench Advantage

Dual-Function Testing:ombines power steering pump testing and steering gear (rack/box) testing in one unit, saving workshop space and equipment costs.
Deep Diagnostics: Specifically engineered to identify common but difficult steering problems like Internal Leakage (causing drift), Hard Spots (Binding) , and Assist Imbalance (Symmetry issues).
Powerful Performance: Supports a maximum pressure of 15MPa and a flow rate of 50L/min , covering the testing needs of most passenger cars and light trucks.
Complete Workstation: Comes standard with a built-in Data Printer for generating professional test reports and an integrated Work Table for convenient operation.

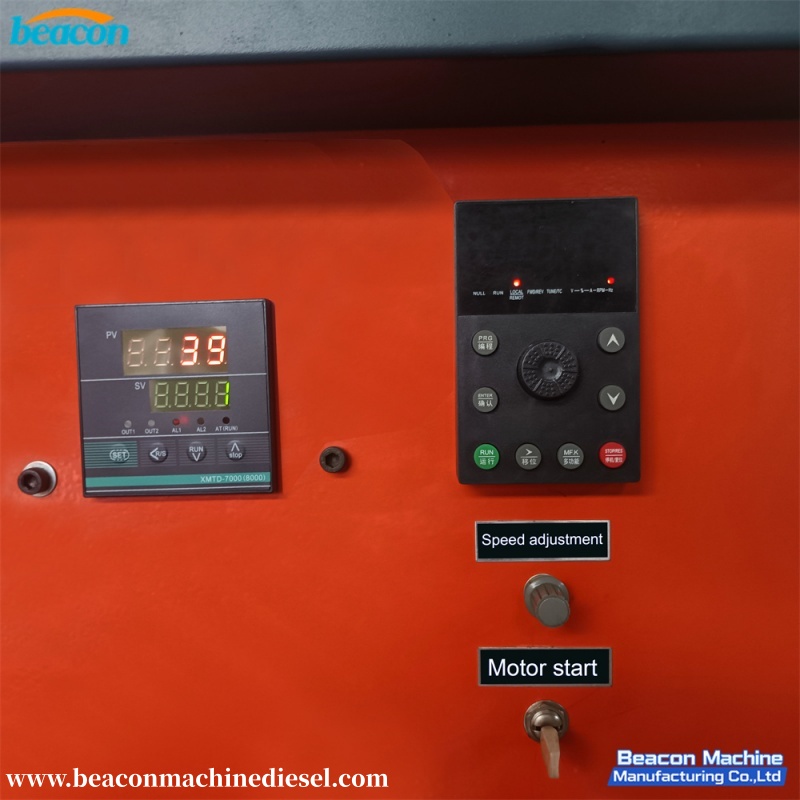

Stable Control: Uses a 5.5KW frequency inverter for smooth speed regulation and energy efficiency.
